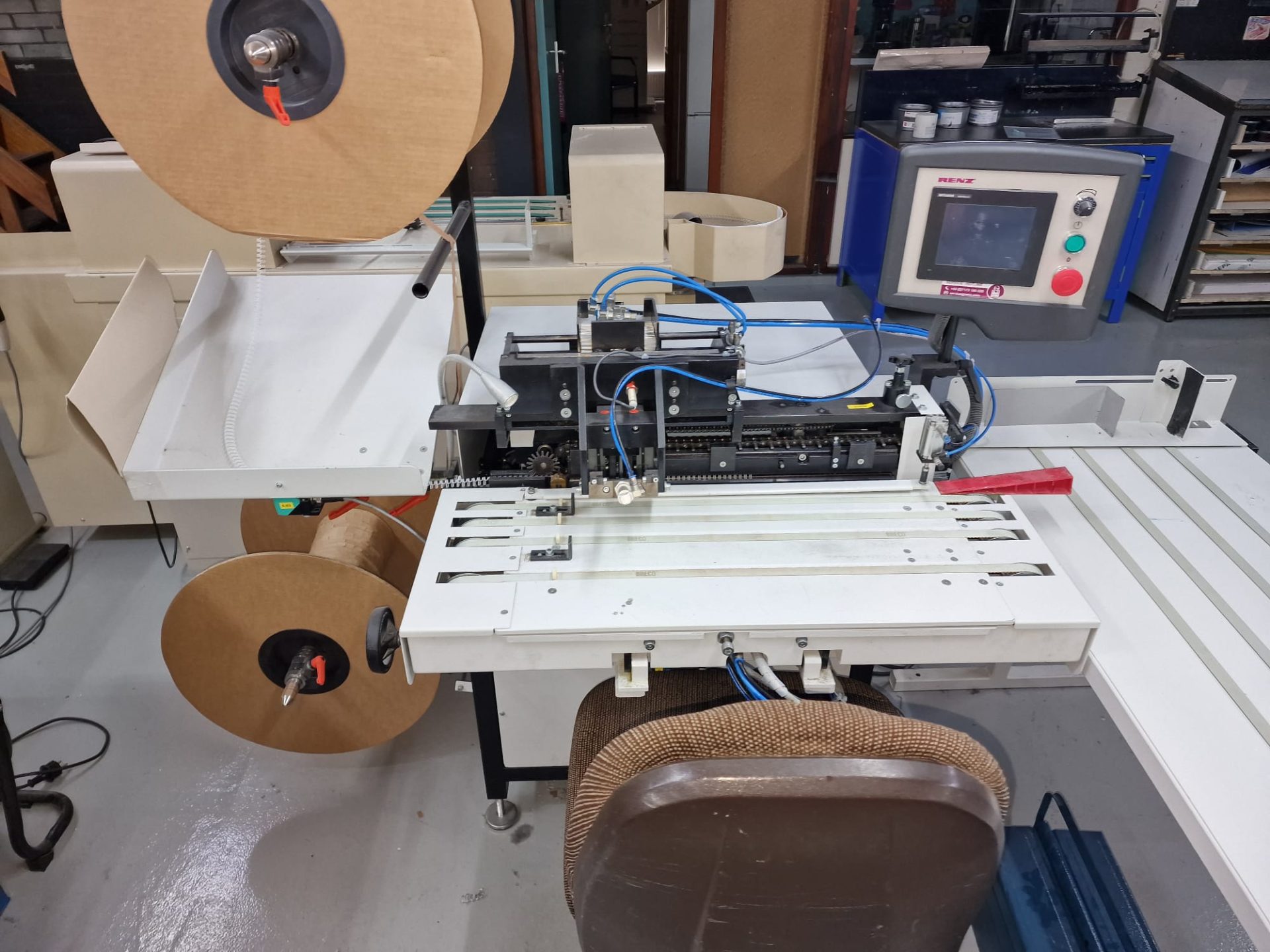

Renz AUTOBIND 500 HS 2015

Renz AUTOBIND 500 HS
Year 06/2015
Mechanical cycles per hour 2,000
Pitch 3:1, 2:1
Binding thickness 1 – 23 mm
Binding element Ø 5.5 – 28.5 mm
3/16“ – 1 1/8“
Min. binding width 60 mm
Max. binding width 500 mm
Min. unbound edge 100 mm
Max. unbound edge 500 mm
Binding operation Foot pedal
Time required for diameter change 15 min
Format change without diameter 1 min
Calendar hangers Optional
Machine dimensions L x W x H 2,050 x 1,960 x 1,700 mm
Machine weight 220 kg (1)
Machine packing dimensions L x W x H 1,730 x 1,230 x 1,600 mm
Machine weight with packing 385 kg (1)
Compressed air 7.5 bar / 330 – 340 l/min
Power requirement 230V~50Hz / 0.8kW
115V~60Hz / 0.8kW

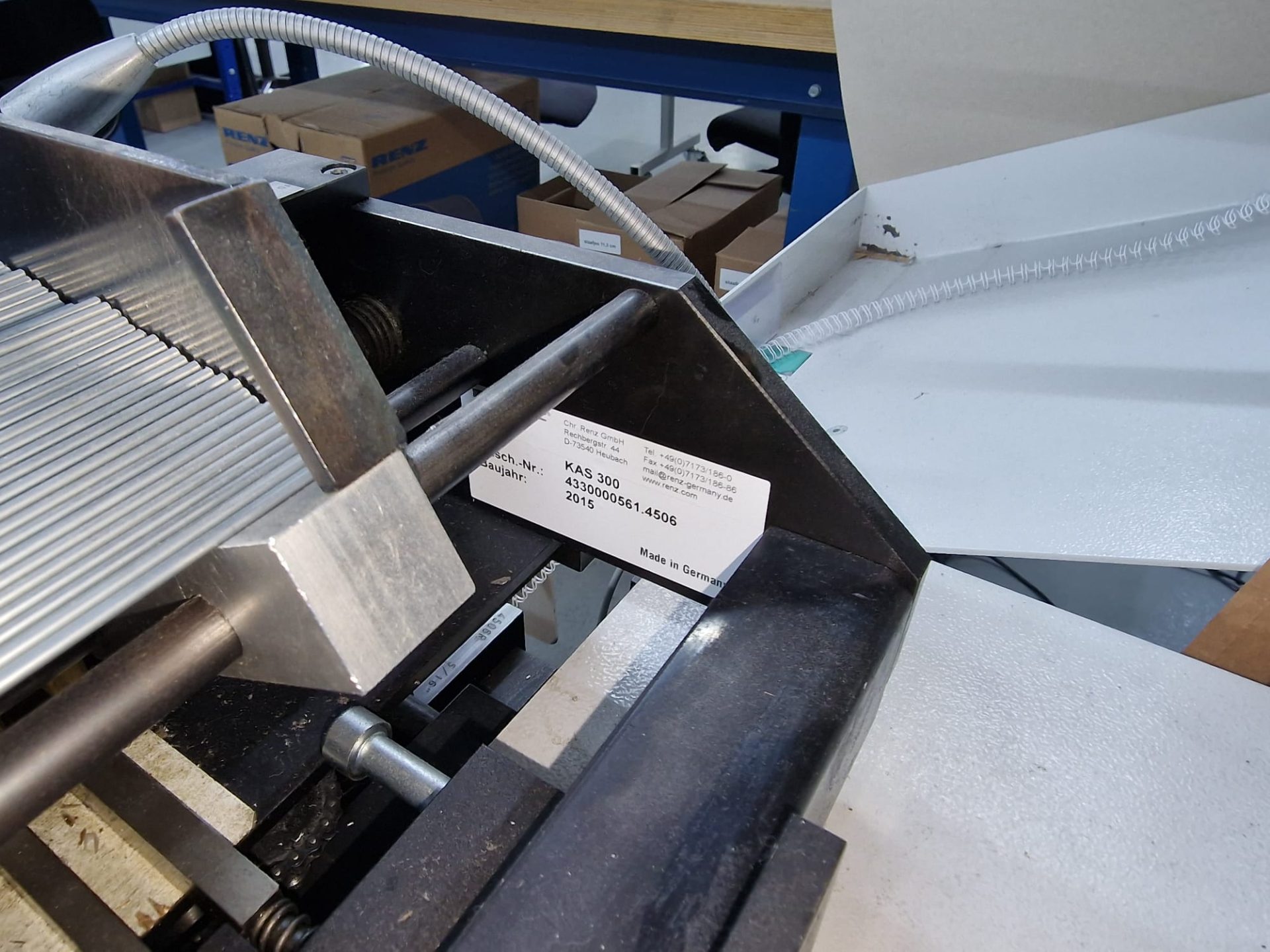

KAS 300 Hanger feeder unit
Year 2015
